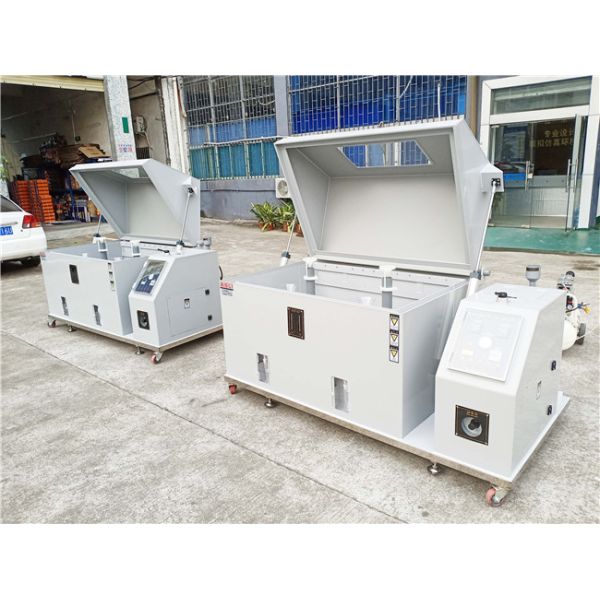

1/6 ASTM B-117 Corrosion Resistant Programmable Salt Spray Corrosion Test Chamber

Volume : 108L

spray volume : 1.0~2.0ml /80cm2 /h

pressure : 1.0~6.0kgf/cm2

spray method : Continuous Spraying or Programmable Spraying

Brand Name : ASLI

Model Number : SH-60

Certification : CE, ISO

Place of Origin : China

MOQ : 1 set

Price : negotiable

Payment Terms : T/T, Western Union

Supply Ability : 100 sets per quatar

Delivery Time : 15 workdays

Packaging Details : strongly export plywood case

function : Corrosion Test

Internal Dimension : W600xH400xD450mm;

test standard : ASTM B117

concentration of NaCl : 5%

Contact Now

Product Description
Salt Spray Resistance Corrosion Test Chamber can be used for a variety of materials including coating, surface treatment, electroplating, organic and inorganic coating, anodizing, rust proof oil and preservative treatment test of its corrosion resistance, so as to establish the quality of the products.

Test Standard :
1.GB/T 2423.17-1993 salt spray test
2.GB/T 2423.18-2000 salt spray test
3.GB/T 10125-1997 salt spray test
4.ASTM.B117-97 salt spray test
5.JIS H8502 salt spray test
6.IEC68-2-11 salt spray test
7.IEC68-2-52 1996 salt spray test
8.GB.10587-89 salt spray test
9.CNS.4158 salt spray test
10.CNS.4159 CASS Accelerated acetic acid copper salt spray test
11..GB/T 12967.3-91 CASS Accelerated acetic acid copper salt spray test
1/6 ASTM B-117 Corrosion Resistant Programmable Salt Spray Corrosion Test Chamber
1/6 ASTM B-117 Corrosion Resistant Programmable Salt Spray Corrosion Test Chamber
Specification
Salt Spray Resistance Corrosion Test Chamber Technical Parameters
Model
SH-60
SH-90
SH-120
SH-160
Internal Dimension
W*H*D (mm)
600*450*400
900*600*500
1200*800*500
1600*800*500
External Dimension
W*H*D (mm)
1100*600*1200
1400*950*1200
1900*1300*1400
2300*1300*1400
Lab Temperature
Saline test (NSS ACSS) 35±1 degree C ;Corrosion Test (CASS)50±1 degree
Pressure Bucket
Temperature
Saline test method (NSS ACSS) 47±1 degree C / Corrosion Test (CASS)63±1 degree
Lab Capacity(L)
110
270
500
800
Saline Capacity(L)
15
25
40
40
Saline Concentration
5% concentration of NaCl, or every Liter 5% NaCl add 0.26g CuCl2H2O
Compressed Air
Pressure(Kgf)
1.0~6.0
Spray Volume
1.0~2.0ml /80cm2 /h(working at least 16 hours, and take the average value)
Spray Form
Continuous Spraying or Programmable Spraying
Power
AC220V 1phase 3 lines15A
Weight(Kg)
65
80
120
160
Salt Spray Resistance Corrosion Test Chamber Specifications
1.LCD display and a pid controller or touch screen programmable controller.
2.Entire PVC sheet material, the internal ring with the use of advanced three-dimensional flutter high technology products, strong structure, fresh, never deformation and acid and alkali, high temperature and never aging, for salt spray, copper acetate, and other test specifications.
3.Controller are in the same panel, the operation simple and clear.
4.Neutral salt spray (NSS), acetic acid salt spray ( AASS ), copper accelerated salt spray ( CASS ) either of the test lab
Packing & Delivery
1/6 ASTM B-117 Corrosion Resistant Programmable Salt Spray Corrosion Test Chamber
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profile
1/6 ASTM B-117 Corrosion Resistant Programmable Salt Spray Corrosion Test Chamber

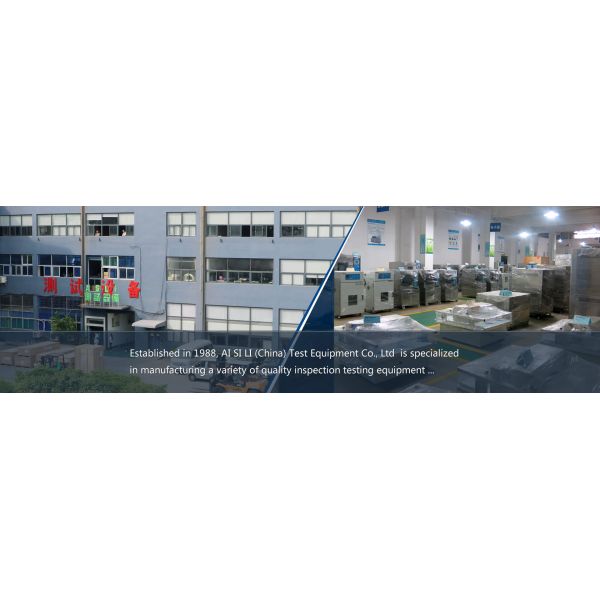

We are a long history testing equipment manufacturer, in the past 28 years, we devoted to simulation environmental testing equipment and Mechanical vibration and shock testing machine. Salt Spray Resistance Corrosion Test Chamber is our star products , and we had obtained the CE certification for this machine
1/6 ASTM B-117 Corrosion Resistant Programmable Salt Spray Corrosion Test Chamber
